CloudPrem Ingress Configuration
CloudPrem is in Preview.
Overview
Ingress is a critical component of your CloudPrem deployment. The Helm chart automatically creates two ingress configurations called public ingress and internal ingress. If the AWS Load Balancer Controller is installed on the cluster, it provisions one ALB per ingress configuration. Each load balancer can be further configured using ingress annotations.
Public ingress
Only the CloudPrem gRPC API endpoints (paths starting with `/cloudprem`) perform mutual TLS authentication. Exposing any other endpoints through the public ingress introduces a security risk, as those endpoints would be accessible over the internet without authentication. Always restrict non-gRPC endpoints to the internal ingress.

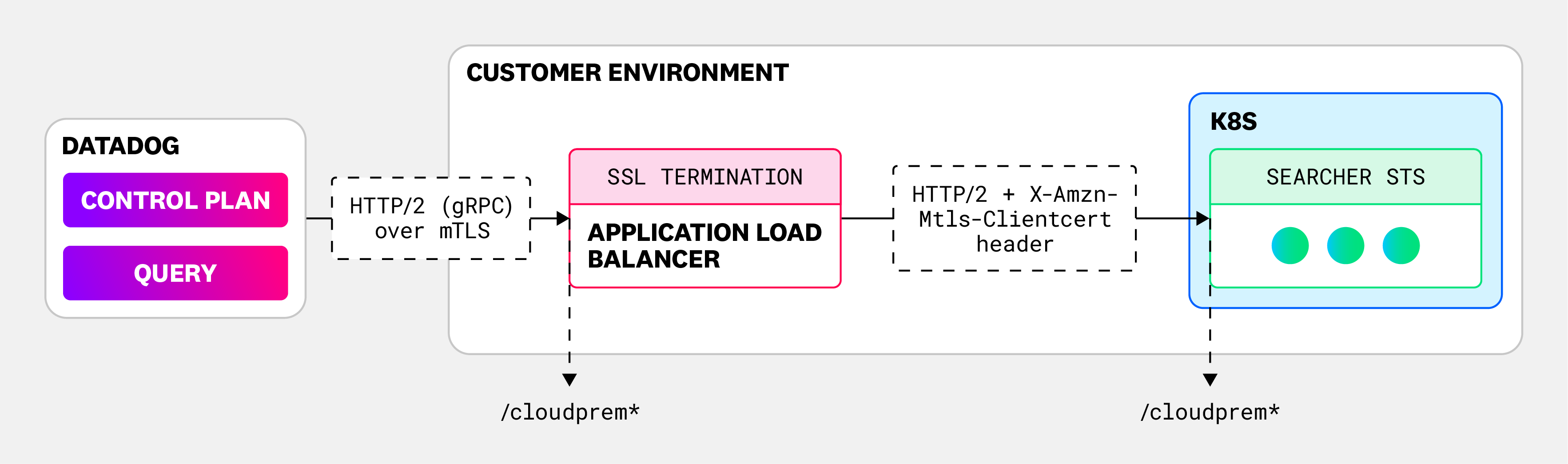

The public ingress is essential for enabling Datadog’s control plane and query service to manage and query CloudPrem clusters over the public internet. It provides secure access to the CloudPrem gRPC API through the following mechanisms:
- Creates an internet-facing AWS Application Load Balancer (ALB) that accepts traffic from Datadog services
- Implements TLS encryption with termination at the load balancer level
- Uses HTTP/2 (gRPC) for communication between the ALB and CloudPrem cluster
- Requires mutual TLS (mTLS) authentication where Datadog services must present valid client certificates
- Configures the ALB in TLS passthrough mode to forward client certificates to CloudPrem pods with the
X-Amzn-Mtls-Clientcert header - Rejects requests that are missing valid client certificates or the certificate header
This setup ensures that only authenticated Datadog services can access the CloudPrem cluster while maintaining secure encrypted communication end-to-end.
IP Allowlisting
The Datadog control plane and query services connect to CloudPrem clusters using a set of fixed IP ranges, which can be retrieved for each Datadog site from the Datadog IP Ranges API, specifically under the “webhooks” section. For example, to fetch the IP ranges for the datadoghq.eu site, you can run:
curl -X GET "https://ip-ranges.datadoghq.eu/" \
-H "Accept: application/json" |
jq '.webhooks'
Internal ingress

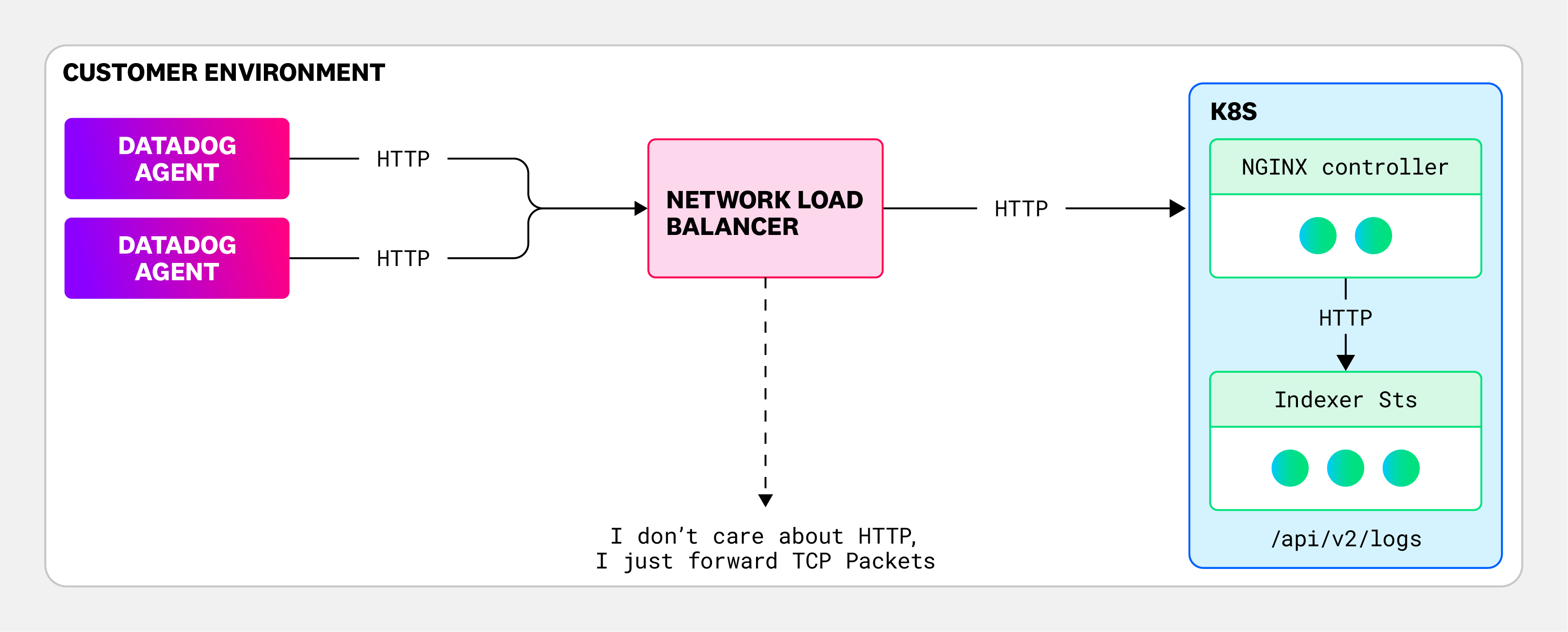

The internal ingress enables log ingestion from Datadog Agents and other log collectors within your environment through HTTP.
By default, the chart creates an internal AWS Application Load Balancer (ALB) to route HTTP traffic to the appropriate CloudPrem services based on the requested API endpoint path. However, if you prefer to use your own ingress controller (such as HAProxy, NGINX, or Traefik), you can disable the default internal ALB and configure your controller with the following routing rules:
rules:
- http:
paths:
# Ingest (Quickwit, ES, Datadog) endpoints to indexers
- path: /api/v1/*/ingest
pathType: ImplementationSpecific
backend:
service:
name: <RELEASE_NAME>-indexer
port:
name: rest
- path: /api/v1/_elastic/bulk
pathType: Prefix
backend:
service:
name: <RELEASE_NAME>-indexer
port:
name: rest
- path: /api/v1/_elastic/*/_bulk
pathType: ImplementationSpecific
backend:
service:
name: <RELEASE_NAME>-indexer
port:
name: rest
- path: /api/v2/logs
pathType: Prefix
backend:
service:
name: <RELEASE_NAME>-indexer
port:
name: rest
# Index management API endpoints to metastores
- path: /api/v1/indexes
pathType: Prefix
backend:
service:
name: <RELEASE_NAME>-metastore
port:
name: rest
# Everything else to searchers
- path: /*
pathType: ImplementationSpecific
backend:
service:
name: <RELEASE_NAME>-searcher
port:
name: rest
